Automatic Transformer Core Cutting Machine Two Cutting and Two Punching

Description of tranformer core cutting machine HJX400-LL

Transformer Core Cutting Machine Two Cutting and Two Punching HJX400-LL is a special equipment for cutting silicon steel to make transformer iron core. The machine is with the following features:

1. The transverse shear line adopts single-side location and manual width adjustment. Servo power and full-automatic PLC control system are employed.

2. Punch and shear are driven by high-response servo motor at high efficiency, high precision, low noise and low failure rate.

3. AC servo system and controller are adopted in feeding system to realize precise determination of length.

4. Audio-visual color HMI in Chinese is adopted, and operators can easily accomplish choice of lamination forms, input and modification of parameters, etc. by means of touch screen.

5. Manual and automatic separation and stacking of materials for quantitative shear.

Quick details of transformer core cutting machine

• Cutting thickness 0.2 ~ 0.35mm
• Cutting width 40 ~ 400mm
• Feeding speed 120m/min
• Power 12.5kw
• Customized color
• One year warranty

Main Parameters of transformer core cutting machine

The standard specifications of HJX400-LL is shown below, however, the specifications can be amended as requested.

Fig 1: Transformer core cutting machine HXJ400-LL's side view

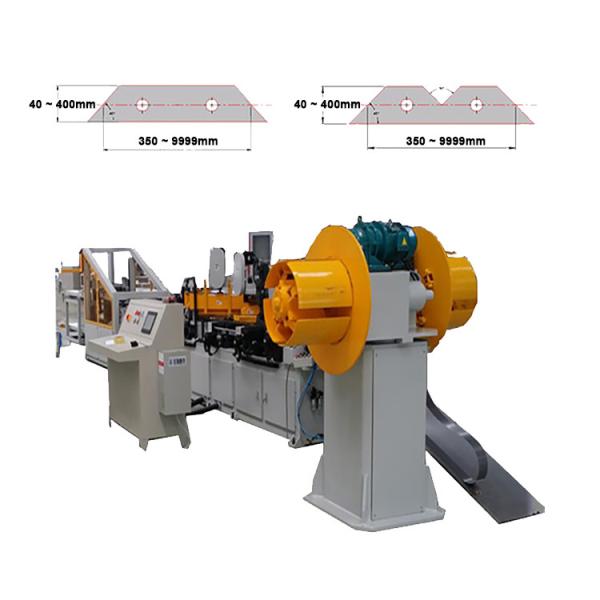

Fig 2: Transformer core cutting machine HJX400-LL's full view
