Adjustable Lap Core Stacking Table Amorphous Transformer Core Stacking Table

Description of transformer core stacking table ZPT-5T

Transformer core stacking table ZPT-5T is a special stacking equipment to stack lap cores. This kind of stacked core can be used in amorphous transformer and other similar products. The transformer core stacking table is driven by a hydraulic station for lifting and fliping up the stacked core. The transformer core stacking table is controlled through a hand held controller. It is very easy to operate the stacking table.

Quick details of transformer core stacking table ZPT-5T

• Working height 850mm
• Hydraulic station 1 piece
• Linear guide
• Maximum capacity 5000kg
• Motor power 2.2kw
• Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-5T

Typical standard specifications of transformer core stacking table ZPT-5T are shown below and the stacking table can also be manufactured as requested.

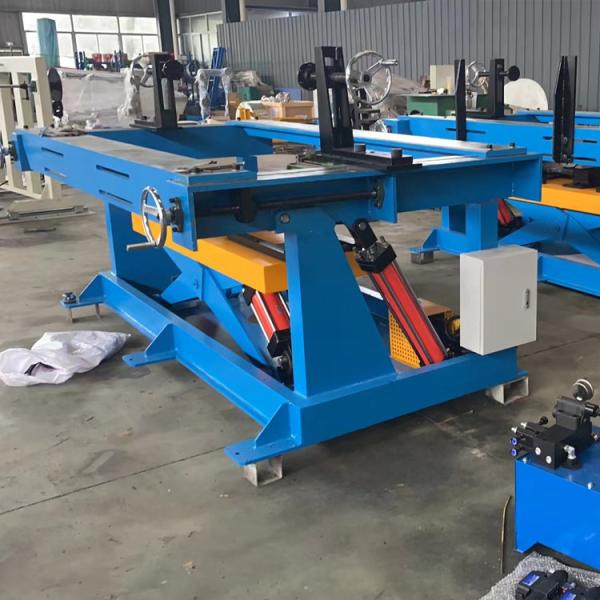

Fig 1: Transformer core stacking table ZPT-5T's full view


Fig 2: Transformer core stacking table ZPT​-5T's tilting
